Pilot Drilling Instructions

Turn the ski upside down.

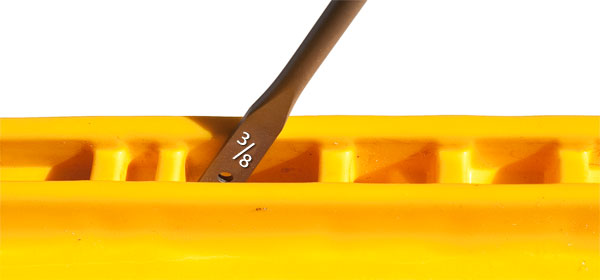

Place the thin edge of the spade bit against the back wall of the pocket.
Push down marking the center spot to be drilled.
Use the 3/8" bit for the back hole and the 5/8" to locate the front hole.
Holding it at an angle drill both holes with the 3/8" bit.

The host bar should be able to move to the front and rear in the pockets, even just a 1/16". To achieve this elongate the rear hole to relieve any stress between the bolts.
